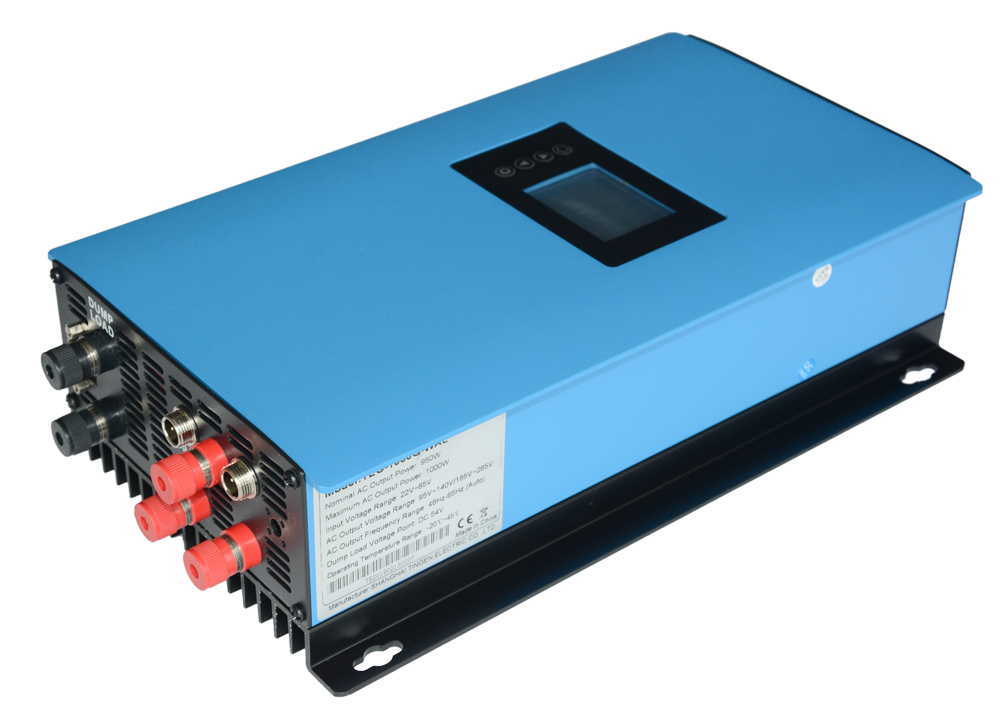

1000W Wind Grid Tie Inverter
- Number:1000G-WDL
- Specif:1000W 22-65V/45-90V
- Size:350*196*88mm
- Category:Wind Grid Tie Inverter
- Gotline:18930085899
-
Details
-
Contact
Model NO: |
TEG-1000G-WAL |
TEG-1000G-WDL |
TEG-2000G-WAL |
TEG-2000G-WDL |
Normal AC Output Power |
950W |
1900W |
||
Maximum AC Output Power |
1000W |
2000W |
||
3 phase AC Voltage Range(Input) |
22V-65V / 45V-90V |
- |
45V-90V |
- |
DC Voltage Range (Input) |
- |
22V-65V / 45V-90V |
- |
45V-90V |
Output Current Waveform |
Pure Sine Wave |
|||
Power Factor |
>0.95 |
|||
Output AC Voltage Range |
95V~140V / 185V~265V(Auto Detect) |
185V~265V |
||
Frequency |
46~65Hz |
|||
Anti-island Protection |
Yes |
|||
Over Current Protection |
Yes |
|||
Reverse Polarity Protection |
Fuse |
|||
Dispaly |
LCD |
|||
Standby Power |
1.2W |
1.2W |
1.5W |
1.5W |
Working temperature |
-20℃~ +50℃ |
|||
Overall dimension(mm) |
350×196×88 |
350×196×88 |
460×196×88 |
460×196×88 |
Net weight |
5.1kg |
4.9kg |
7.5kg |
7.3kg |
Order:1000W Wind Grid Tie Inverter
